SPECIFICATIONS

Angle Ranging Scope: -30° to 30°

Battery Included: Yes

Brand Name: REVASRI

Certification: CE,FCC,RoHS

Choice: yes

Eyepiece Lens Diameter: 13.2MM

Field of View: 6.5°

Focusing Mode: Manual Focusing Eyepiece

High-concerned chemical: None

LCD Display: Transmission LCD Display

Laser Safety: Class 1, Laser Wavelength 905nm

Laser hazard level: Class 1（<1mW）

Lens Quality: Multi-Coated

Magnification: 6X magnification

Measurement Accuracy: ±0.5M/Y

Model Number: 3M02-BGR

Objective Lens Diameter: 24MM

Origin: Mainland China

Power Source: Rechargeable

Power Supply: Type-C Rechargeable

Power Type: Rechargeable

Product Applications: for golfing

Product Name: Golf Laser Rangefinder

REVASRI Model: R-3M02-1000-BGR-L

Ranging Error: ±1M/Y

Ranging Method: Semiconductor Laser Ranging

Semi-finishedproduct: No

Size: 101MM*78MM*38MM

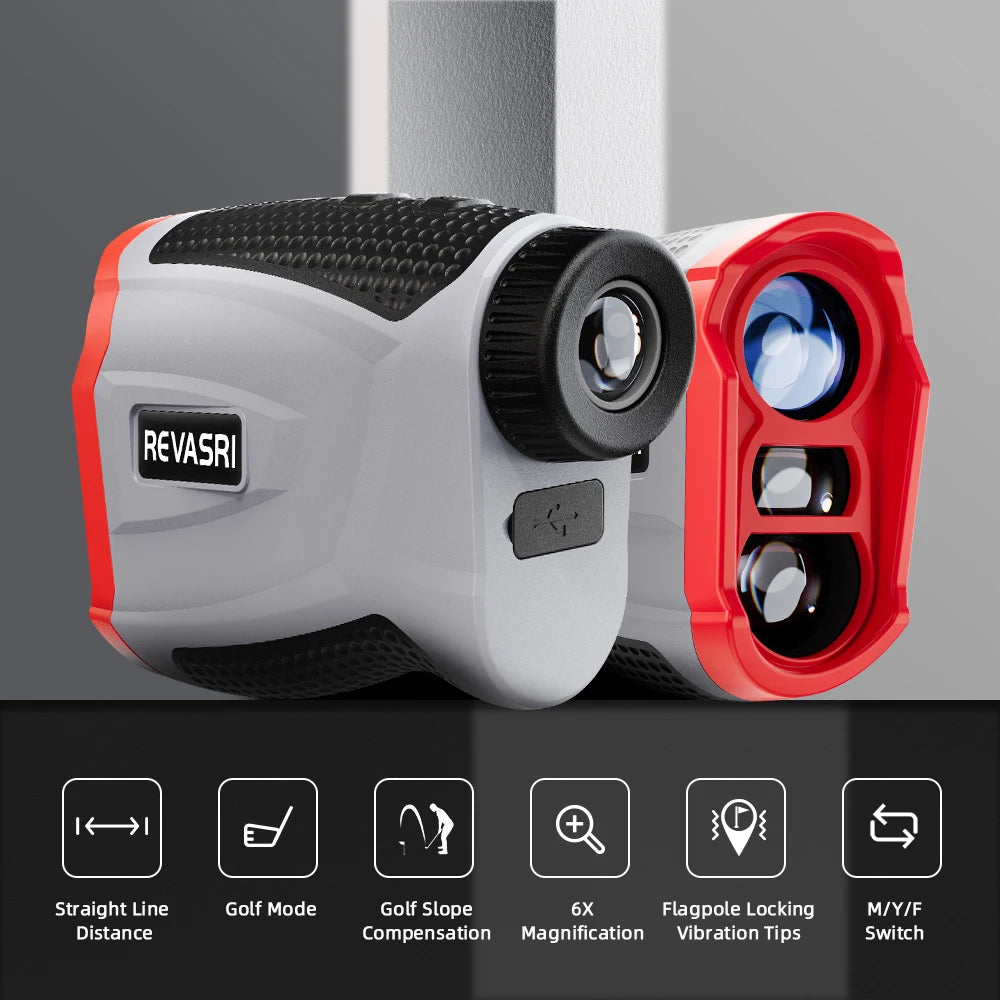

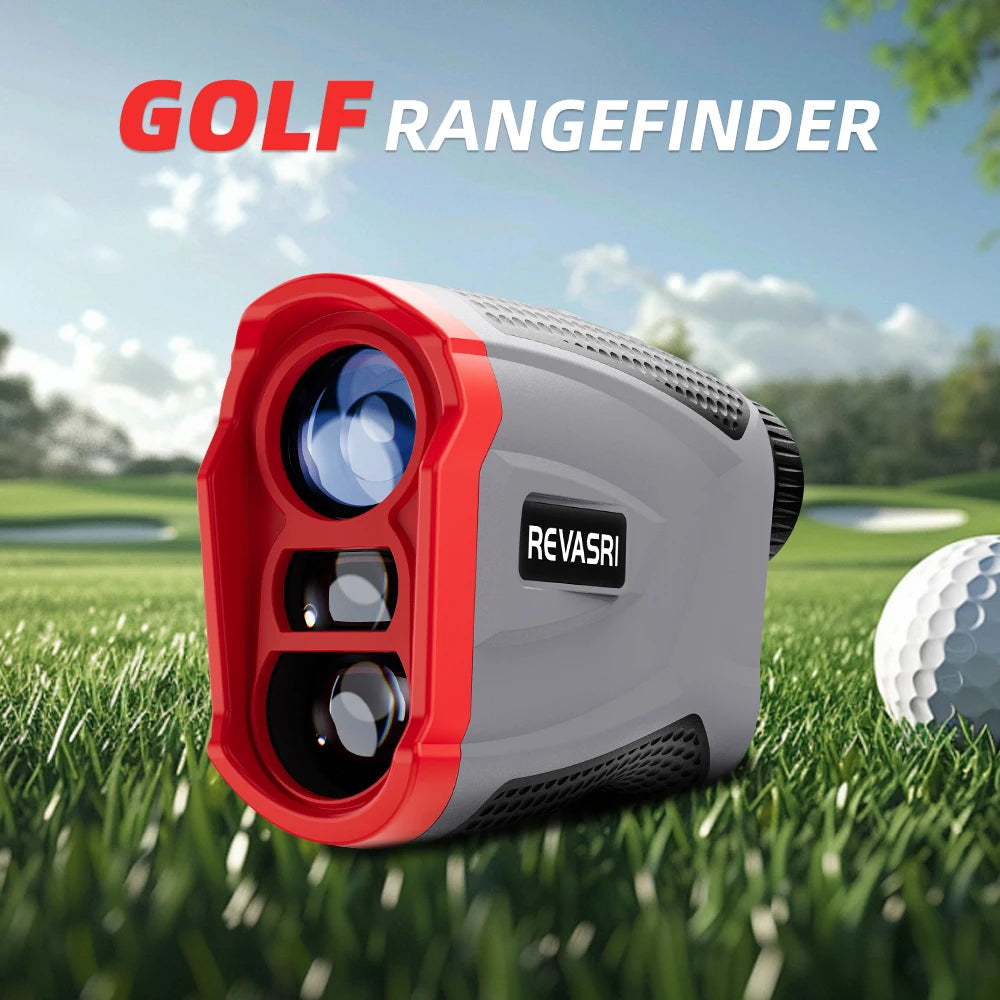

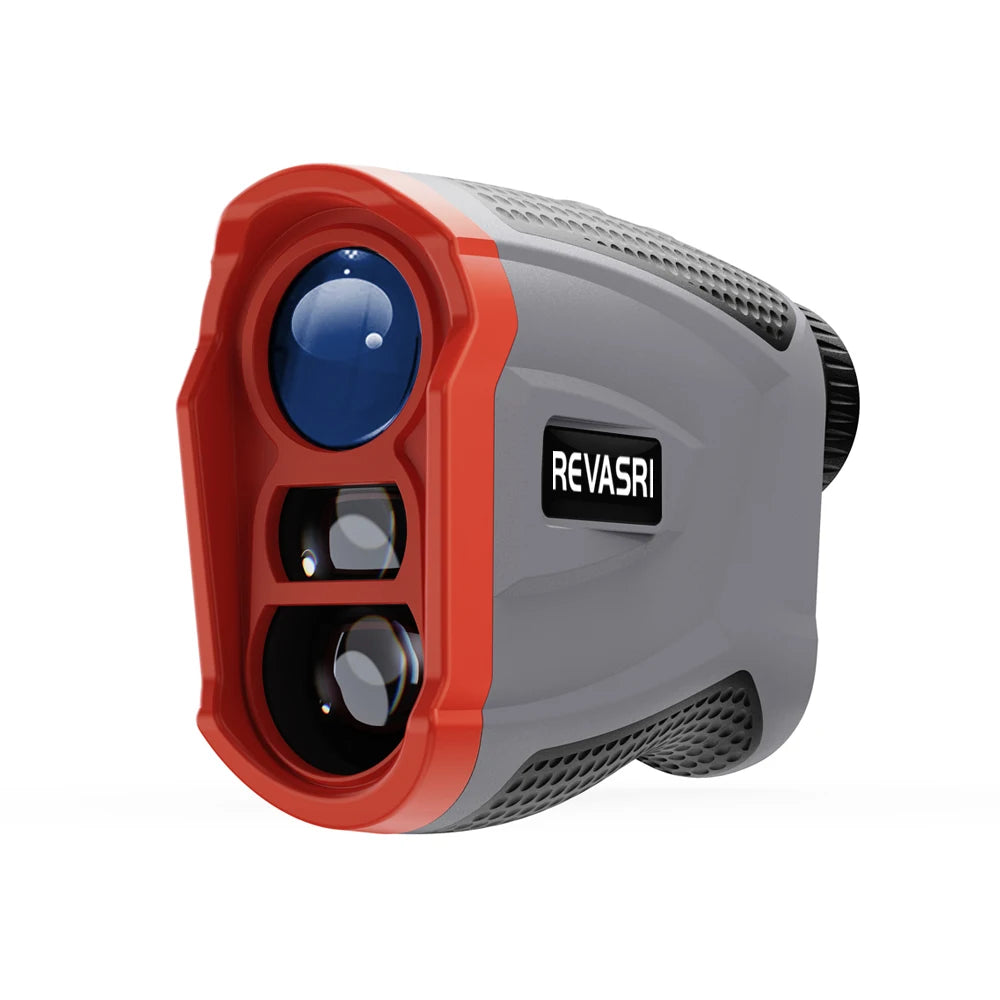

REVASRI Golf Laser Rangefinder Outdoor Sport 6X Magnification Range Finder Monoculars Telescop Professional Golf Distance Meter

Precautions:

1. This rangefinder is designed for long-distance measurements, with a minimum measurement distance of 5 meters.

2. Glass can reflect the laser beam and affect measurement results. Do not measure through glass during use.

3. In low-light conditions at night, additional lighting is required to view the readings, as the eyepiece display is not illuminated.

4.It supports 6x magnification, which can be adjusted to the appropriate magnification by rotating the eyepiece knob.

5.Rain, fog, and dusty conditions may obstruct laser transmission and affect the maximum measurement distance.When measuring objects, select light-colored buildings as the farthest target as possible. Complex vegetation on mountains can obstruct the reflection of laser signals.

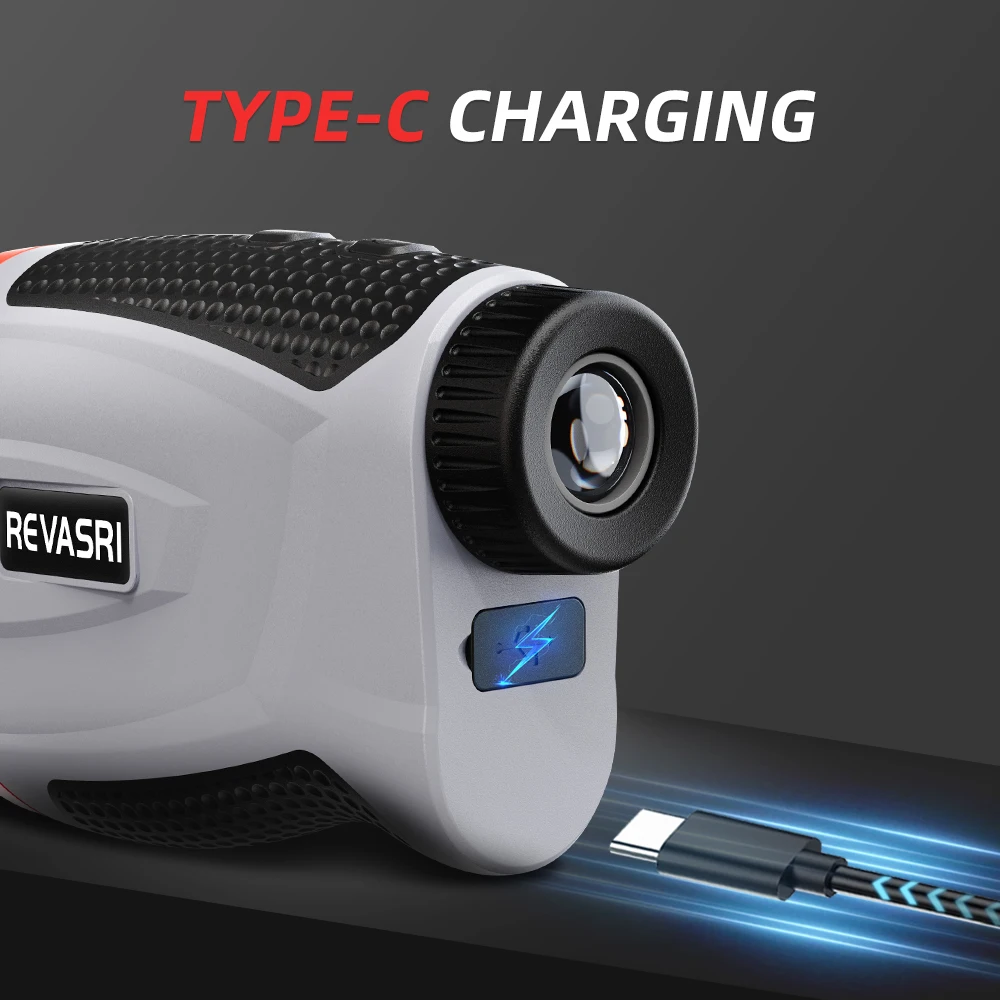

Power Supply:Type-C USB Rechargeable, built-in lithium battery USB charging

Unit switching:Simultaneously press and hold the Measurement button and the M button for 3-5 seconds to see the unit switching between M/Yds/F through the eyepiece

Product Size:101x78x38MM/3.98x3.07x1.49in

Measurement Mode:

1. Tournament Mode, No Slope

2. Training Mode
